Realex Payments

Introduction

The Realex Payments integration implements the Realex HPP (Hosted Payment Page) solution with support for both auto-settled and deferred payments.

Aurora integrates closely with Realex Payments to support:

• Secure PCI compliant payment authorisations
• 3D Secure result analysis
• Fraud result analysis with the option to automatically void payment authorisations
• Realex card storage
• Transaction management:
  • Manual and automatic deferred payment release based on order status
  • Manual and automatic payment refunds based on a settlement batch processing time
  • Manual deferred payment voiding

For more information about the Realex HPP solution please see:
https://www.realexpayments.com/

 Features on the Aurora Realex Integration Roadmap

The following features are scheduled for a subsequent phase of development:

• Alternative Payment Methods i.e. Paypal, BACS etc.
• Managing saved Realex cards from within the Aurora Members area
• Automatically resolve card details locally after paying with a saved card

Aurora HCC Checkout Journey

The Realex Payments integration utilises the following Aurora HCC (Hosted Card Capture) checkout journey:

1. User enters shipping details and submits them from checkout to Aurora
2. Aurora initialises the Realex HPP solution within an iFrame on a new payment page
3. User enters card details and progresses through 3D Secure if required (redirection within the iFrame is managed by Realex)
4. Realex submits payment transaction response data back to Aurora and displays the response within the iFrame
5. Aurora stores the payment response, breaks out of iFrame and either:
   • Redirects the user to the checkout to display errors
   • Redirects the user to the order complete page

Realex Account Settings

To fully utilise all Aurora Realex integration features, you may need to explicitly request that each feature is enabled within your Realex Payments account i.e.

• 3D Secure
• Fraud Management
• Card Storage
• Return safe card details within the HPP response i.e.
  • Last four digits of card
  • Card type
  • Card expiry
• Multiple rebates

It is also important to request the time at which Realex batch process transactions on your account, this can then be defined within the Aurora Realex integration settings.

The 'referrer URL'

To make use of the HCC solution, Realex will require something they refer to as the "referrer URL". This is the URL from which you will be sending your request to them.

This URL is as below:

https://www.yourdomain.com/checkout/

Note: You should replace the "www.yourdomain.com" section with your domain name when sending this to Realex.

Aurora Realex Integration Settings

To start using the Realex Payments integration, use the Aurora menu and navigate to Store > Settings > Payment Providers > Card Payment Provider and select Realex. The Realex Payments integration can then be configured within this section.

Once you have an account with Realex Payments, they will provide you with the following details that must be entered within the Aurora Realex integration settings.

• Merchant ID
• Account
• Secret
• Rebate Password

Integration Settings

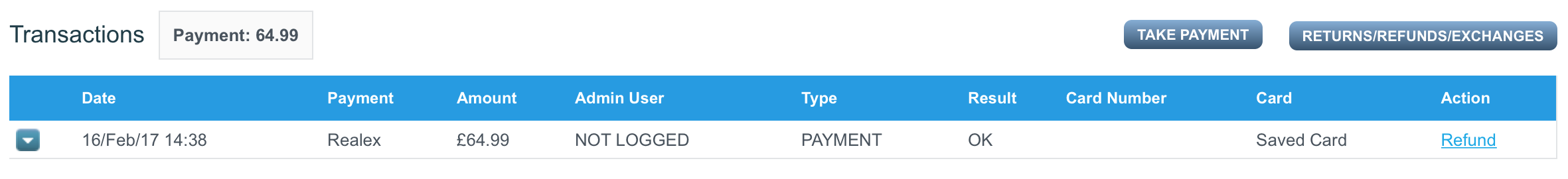

Save Card Payments

When a user chooses to pay with a previously stored card, the Realex HPP solution does not return card details and instead returns a payment method reference; in this case, Aurora will set the card type to Saved Card i.e.

📘

Aurora Commerce are currently assessing the viability of automatically resolving the returned payment reference to locally stored card details from a previous transaction.

Fraud Results

Where the Realex account has been configured with Fraud Rules, the Realex HPP solution will return fraud results within the payment transaction response. Aurora will automatically process the fraud results and reflect these with the Aurora backend interface.

See Fraud Checking for further details on how Aurora reflects order fraud information.

Order Statuses

Aurora will also update the order status to either an Approved or Hold status based on the Aurora order status configuration.

See Order Statuses for further details on how to configure order statuses.

Refunds

Because of the way Realex batch process payment authorisations on a daily basis, refunds cannot always be performed in real time and instead may require scheduling for when the authorisation transaction has been sent to the bank.

For this reason, when a refund or soft void is performed within Aurora, either manually or automatically, a pending refund transaction may be created and processed automatically after the next batch processing time as defined with the Realex integration settings.

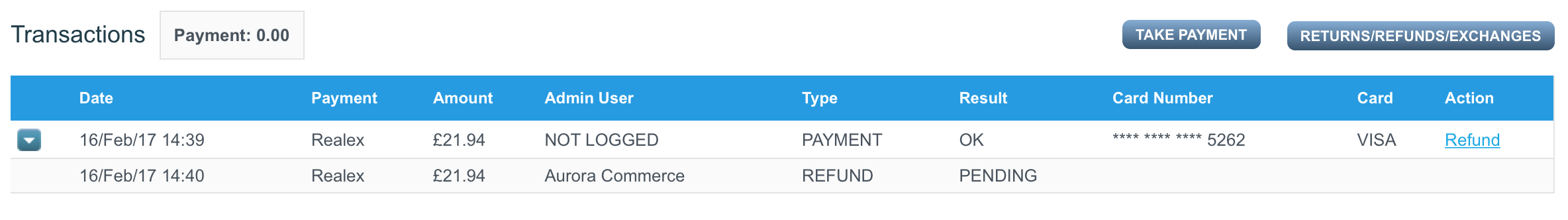

Order Refunds

Pending refunds are displayed within the transaction section of the View Order page i.e.

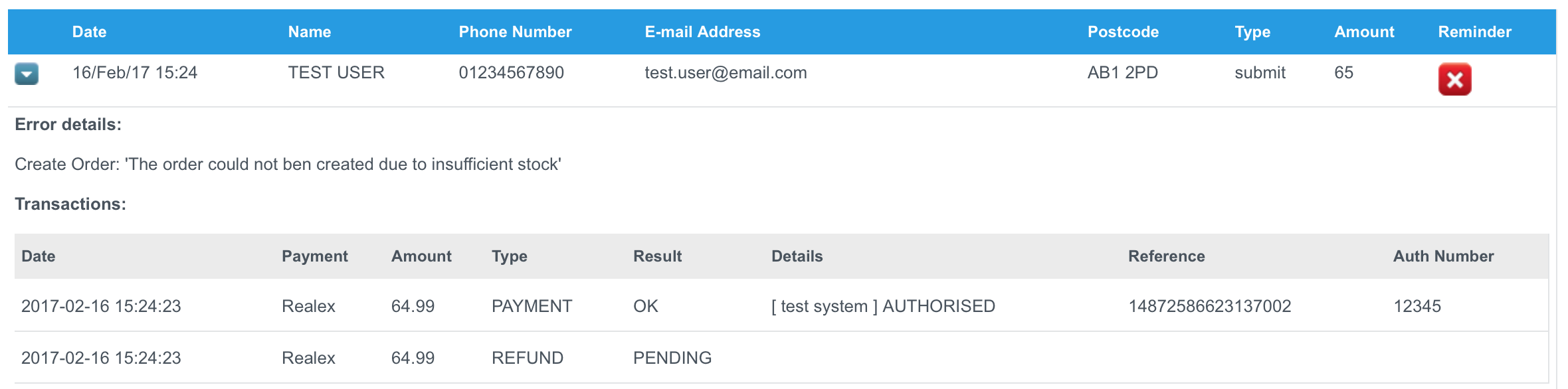

Failed Order Refunds

Should Aurora encounter an error state when attempting to save an order or allocate stock after payment has already been taken, a failed order is automatically created and all associated transactions are logged accordingly, including any release and refund transactions associated with a soft void i.e.

Payment Reconciliation

The Aurora Realex integration supports automatic reconciliation of payment transactions.

The automated payment reconciliation process runs every 15 minutes and will query the Realex API for payment transactions registered against all payment requests sent to Realex by Aurora that did not result in a successful order.

If this process encounters a payment transaction that does not correlate to either an Aurora order or failed order transaction that has not yet been handled, Aurora will register the payment transaction within the failed order log and automatically attempt to "soft void" the transaction.

📘

SOFT VOID: Aurora will release and refund the transaction to avoid leaving a shadow authorisation on the customers account.

🚧

The Realex Query API does not return the time that a payment transaction was actually taken and therefore, when voiding a transaction from within the reconciliation process, Aurora will create a pending refund to be actioned automatically after the next batch processing time.

Please see the Payment Reconciliation guide for more information about this process.

Common errors

508
Incorrect hash. Please check your code and the Developers Documentation.

👍

Please contact Realex to confirm your account secret and other settings found here are correct under Store > Settings > Payment Providers > Realex. It may be that these settings are not correct.

511
Unable to connect to the merchant's response URL [URL].

👍

This can happen when testing using L1 maintenance, the following network ranges  should be added to the allowed ip address list for maintenance exceptions ( use all text within the quotes, see Aurora Splash Page (Maintenance Mode) for more details):

• "/193\.105\.253\..*/"
• "/52\.155\.173\..*/"
• "/51\.145\.190\..*/"

👍

This can also happen on test sites which have a username and password to allow access, contact your AC account manager to resolve this issue.

Checkout Errors

Aurora will display the following checkout errors based on the response status code returned by Realex:
